GST-XT
Group Controller
HARDWARE
LON TECHNOLOGY
FUNCTIONALITY
TECHNICAL DATA

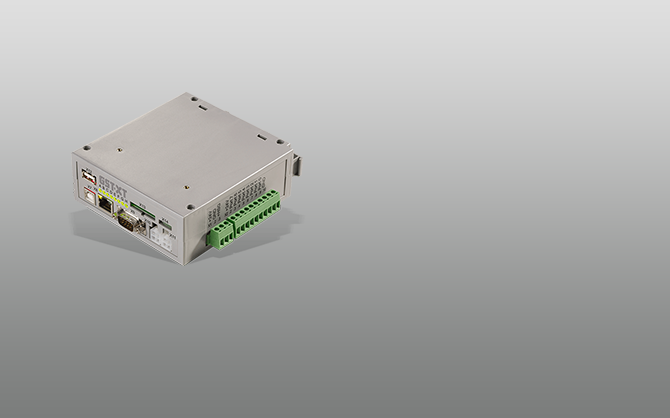

The GST-XT consists of an FST and the GST-XT group circuit board, which is installed in a separate housing. Power for the GST-XT, as well as the shaft bus and its members, is supplied by means of an external 24 V DC mains device. As a result, the GST-XT remains switched on even after the FST is switched off. Not until the shaft bus input (F6) is switched off is the GST-XT de-energised.
GST-XT
| Supply voltage | 24 V DC ±10% |
| Typical power consumption | 300 mA |
| Outputs | Short circuit-proof |
| Length x height x depth | 126 x 118 x 45 mm |
| Temperature range: Storage & transport / operation | -20 – +70 °C / ±0 – +60 °C |
| Relative humidity: Storage & transport / operation (non-condensing) | +5 – +95 % / +15 – +85 % |
| Protection type | IP20 |
